Ppl204-Ssib-1/2, Pbt Polyester Plastic Pillow Block (Ppl) Fitted With Ss316 Insert Bearing
List Price: $129.93
- DISCOUNTS available for Distributors, OEM & higher quantities. Click "Add to Quote Cart" to request for quote.
- Minimum total invoice order is $50.00
TECHNICAL DESCRIPTION AND ADVANTAGES
Plastic Mounted Blocks are available with a variety of insert bearings to best suit your application. End covers are also available for all Mounted Blocks. They are designed to snap on and keep contaminants from entering the bearing.
- Load and speed calculations are for reference only. KMS recommends testing in the actual environment.
- Information presented is believed to be accurate at the time of publication but it is subject to change without notice.
Related end cover available: End Cover EC204
Specifications
| Weight | 0.7 lbs |
| Inch Metric | both |
| Availability | Some bearings listed on our website may not be in inventory. Some may require a minimum order |

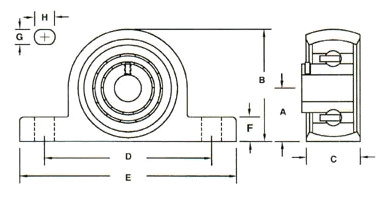

| A (mm) | 33.3 |
| Bore (in) | 1/2 |
| B (mm) | 65 |
| C (mm) | 38 |
| Dynamic Load Capacity (LBS) | 234 |
| D (mm) | 95 |
| E (mm) | 127 |
| F (mm) | 14.2 |
| G (mm) | 12 |
| H (mm) | 14 |
| Max. RPM No Load | 840 |
| Standard Bearing Type | 316 Stainless Raceways and balls fitted with Polymer Cage |
| Standard Block Material | Polyester (PBT Glass Filled) |
| Static Load Capacity (LBS) | 156 |
| Width of Inner Ring (in) | 0.591 |
