2 Bolt Flange

2 Bolt Flange Block Only

2 bolt flange blockonly

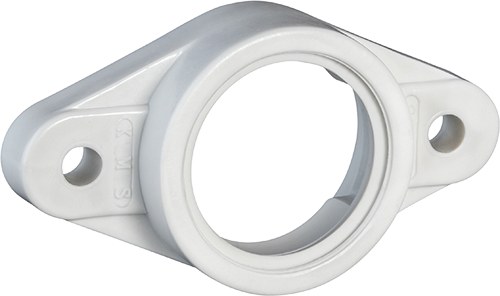

KMS 2 Bolt Flange Blocks are made from engineering grade glass filled PBT polyester and are completely interchangeable with conventional cast iron blocks. These maintenance free blocks have excellent mechanical strength, stiffness and dimensional stability, and never rust or corrode.

HYGIENIC

Where high standards of cleanliness are important, such as in the food industry, their smooth surfaces are much more hygienic than those of cast iron blocks where rough surfaces can harbor objectionable mold or bacteria.

NO PLATING OR COATING TO CHIP OR PEEL

Coated or plated cast iron blocks can scratch, chip and peel. Just the installation of mounting the block can chip the mounting hole edge and begin the process of corrosion. KMS solid plastic mounted blocks will not chip or peel and will never rust.

USED IN MANY INDUSTRIES

KMS blocks are used in a wide variety of industries including food processing, canning, bottling, pharmaceutical, chemical processing, marine and many general industrial applications.

TEMPERATURE

Minimum temperature: -31°F; Maximum in Air: 180°F; Submerged in Water: 120°F
For higher temperatures consult KMS.

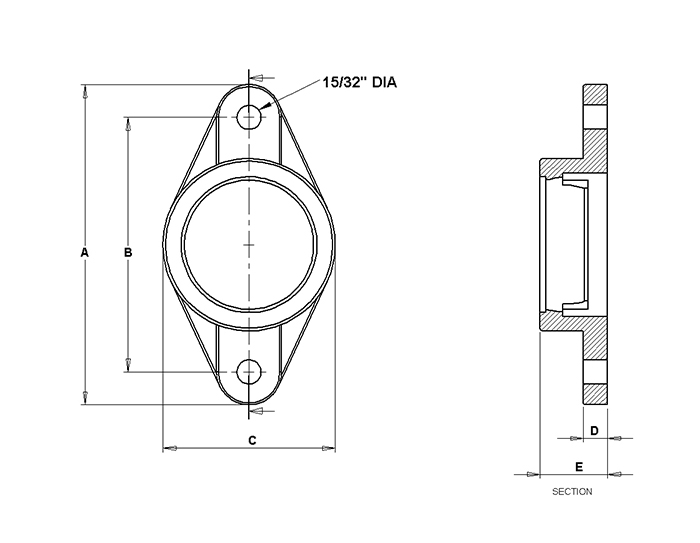

corrosion resistant 2 bolt flange block

Part #	Bearing Shaft Reference	A	B	C	E
NFL204	1/2 in, 5/8 in, 3/4 in	113 mm	90 mm	64 mm	26.5 mm	Details
NFL205	3/4 in, 7/8 in, 1 in	131 mm	99 mm	69.5 mm	29.1 mm	Details
NFL206	1 1/8 in, 1 3/16 in, 1 1/4 in	148 mm	117 mm	80 mm	30.5 mm	Details
